Gyrostabilized optronic ball

TrakkaCam - Light, compact and stabilized

Available with a full suite of 7 payload options:(IR, HDTV, LRF, LP, LI, A/T, IMU/GPS) - Continuous optical zoom on all imaging channels for maximum situational awareness.

Advanced processing of HD digital images in real time.

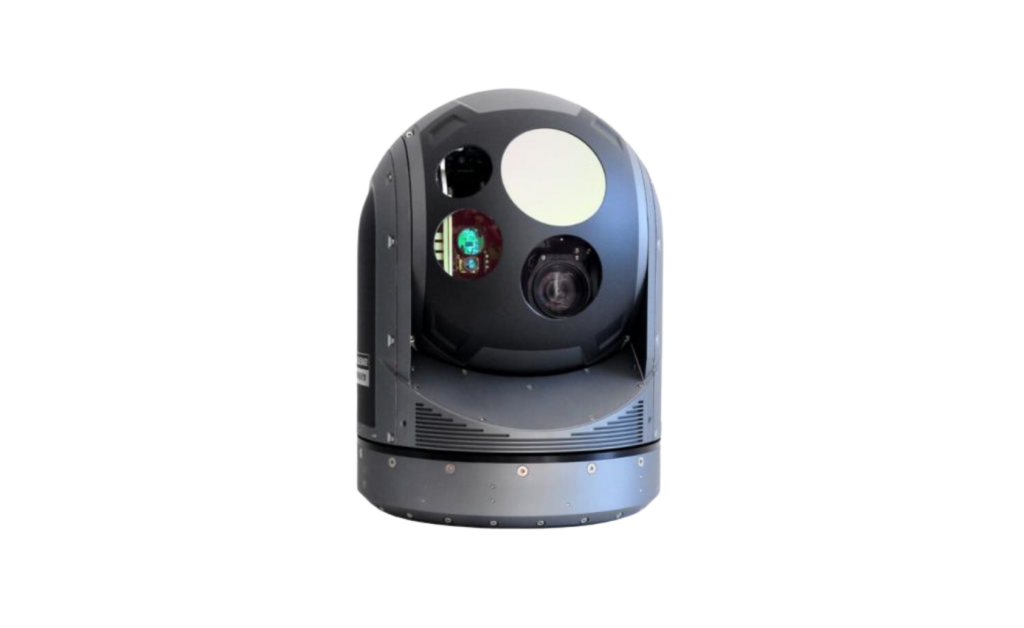

Boule optronique gyrostabilisée Trakka Systems, offrant une surveillance précise et stable pour des missions exigeantes.

State-of-the-art optronic ball for advanced detection and navigation

  • Moving Target Identification (MTI) integrated directly into the system,
  • High-performance 4-axis active gyroscopic stabilization with integrated 6-axis passive isolation for superior image stabilization,
  • Fully integrated IMU/INS with dual GPS capability for static navigation operations,
  • Object tracking and scene tracking modes,
  • MIL-STD and IP66.

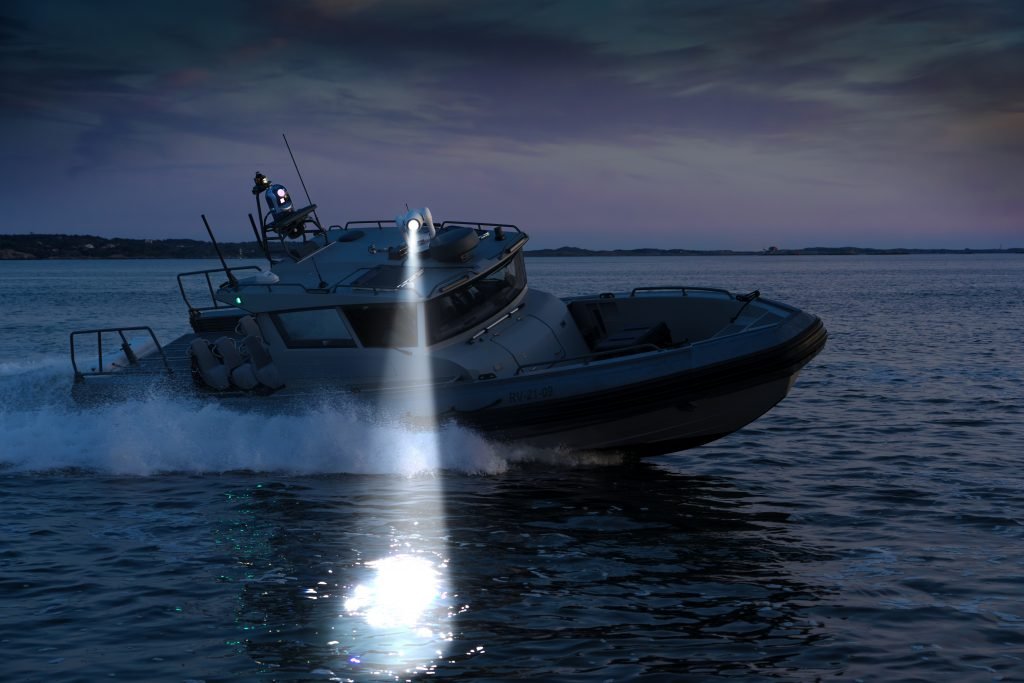

Boule optronique gyrostabilisée Trakka Systems sur une vedette rapide, assurant une surveillance maritime de haute précision.

General specifications

CARDAN SHAFT SPECIFICATIONS
Weight: <22 kg,
Diameter: 300mm,
Azimuth: continuous azimuth,
Elevation: +120° to -20° elevation,
Stabilization: active 4-axis gyroscopic stabilization with integrated passive 6-axis isolation,
THERMAL IMAGE
Type: réseau MWIR 3-5µm,
Resolution: 640×512,
Fields of view: 29.8° to 2° continuous zoom,
Sensor type: cooled.
HDTV CAMERA
Type: HD Global Shutter CMOS,
Resolution: 2,37 MPixel,
Fields of view: 36° to 1.36° continuous zoom.
LASER RANGEFINDER (OPTIONAL)
Classification: class 1, safe for eyes.
Range: various options depending on the mission,
Repeat rate: mission continuous or single mode.
