Tethered drone

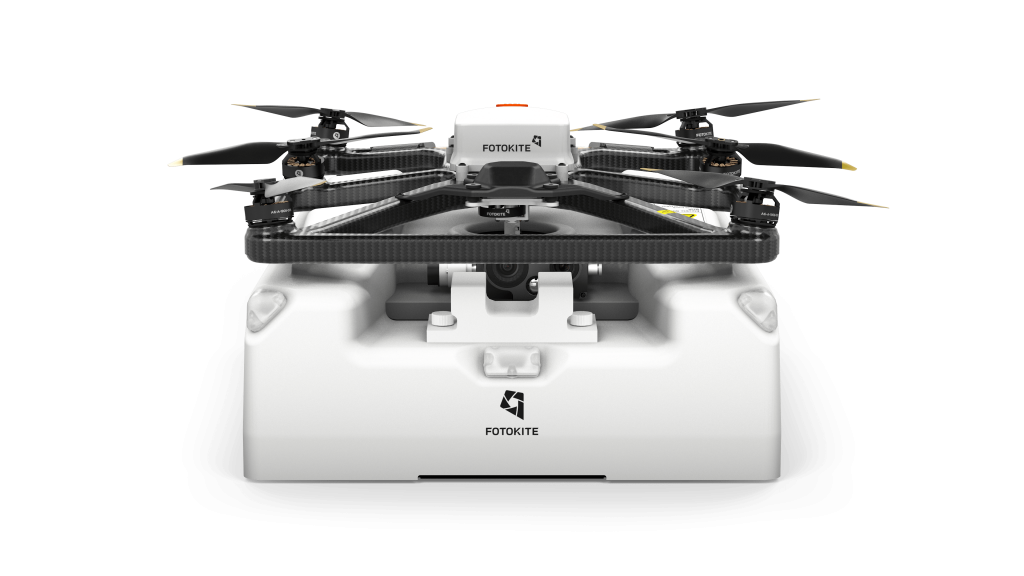

Fotokite Sigma - A ‘remote eye’ situation recognition system
- 24-hour autonomy,
- Maximum flying height of 45m,
- Ultra thin tying cable,
- 220 V/12 V vehicle power supply or battery pack,
- Thermal/RGB camera with stabilized 3-axis gondola,
- Carbon fiber structure (1.2 kg),
- High wind resistance & flight safety (40km/h).
Advanced camera system
Fotokite's latest-generation camera includes a radiometric thermal camera, a wide-angle color camera and a color zoom camera mounted on a three-axis gimbal. Data from these sensors is combined to provide the user with simultaneous, continuous video streams.
Situation awareness at the touch of a button
Fotokite Live is the native operating software for the Fotokite Sigma. Critical situational awareness is permanently available on a rugged tablet, enabling responders to make increasingly information-based decisions through a simple, straightforward interface.

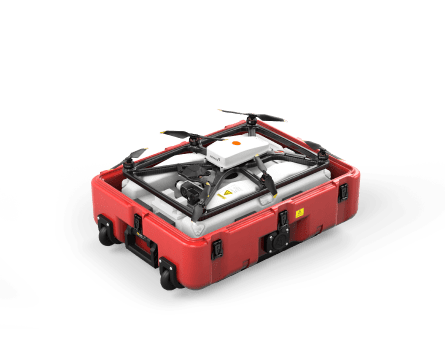

Carrying case
The carrying case configuration means that the Fotokite Sigma can be used interchangeably between vehicles, offering great flexibility in deploying the system at the scene of an incident.

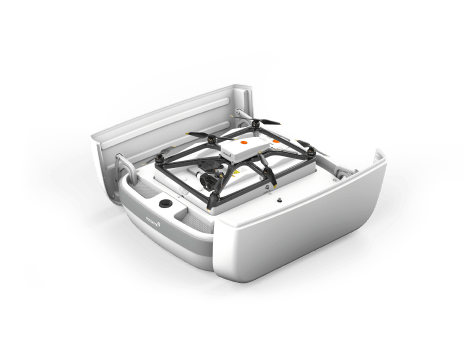

Roof box
The Rooftop Box configuration is the centerpiece of Fotokite, enabling immediate and unrestricted enhancement of situational awareness. Designed for integration into SUVs and heavy-duty vehicles, the Rooftop configuration deploys at the touch of a button.
General specifications
FOTOKITE SIGMA
Flight time: 24h continuous,
Safety and regulatory compliance: no piloting required; take-off and landing at the touch of a button, fully autonomous flight,
Weather resistance: IP55, ready for operation in rain, snow and wind /Maximum operating temperature : -10°C to 40°C,
Scope: maximum flight height of 45 m from ground station,
RGB camera: low-light RGB camera resolution: 12 MP / 32x zoom (10x optical + digital zoom, 0.5x to 16x). RGB stream resolution 1080p (1920 x 1080) / 30 fps,
Thermal camera: radiometric thermal camera with 640 X 512 / 27 fps resolution. Measures absolute temperature from -40°C to 400°C, accuracy ± 5% HFOV 48 degrees Digital zoom 4 X,
LTE modem and video broadcasting: ethernet + WPA2-encrypted WiFi access point for live video streaming and integrated LTE modem for remote live video streaming to support remote incident command,
Flight control: GPS-independent Fotokite autopilot,
Kite : 1.2 kg MTOW take-off weight, carbon fiber and advanced waterproof composites,
Ground station: 9 kg, 504 x 352 x 230mm,
Streambox module: allows real-time remote viewing of the camera's video stream during flight on a third-party server or third-party replay software via a dedicated URL link.
