fixed-wing mini-UAS systems

RQ-35 Heidrun - Resilient and combat-proven Unmanned Aerial Systems (UAS)

  • Autonomy up to 150 min,
  • Superior performance and EW resilience,
  • Transmission range up to 50 km,
  • Manual launch and stall landing,
  • GNSS-denied operation.

Designed to perform in all conditions

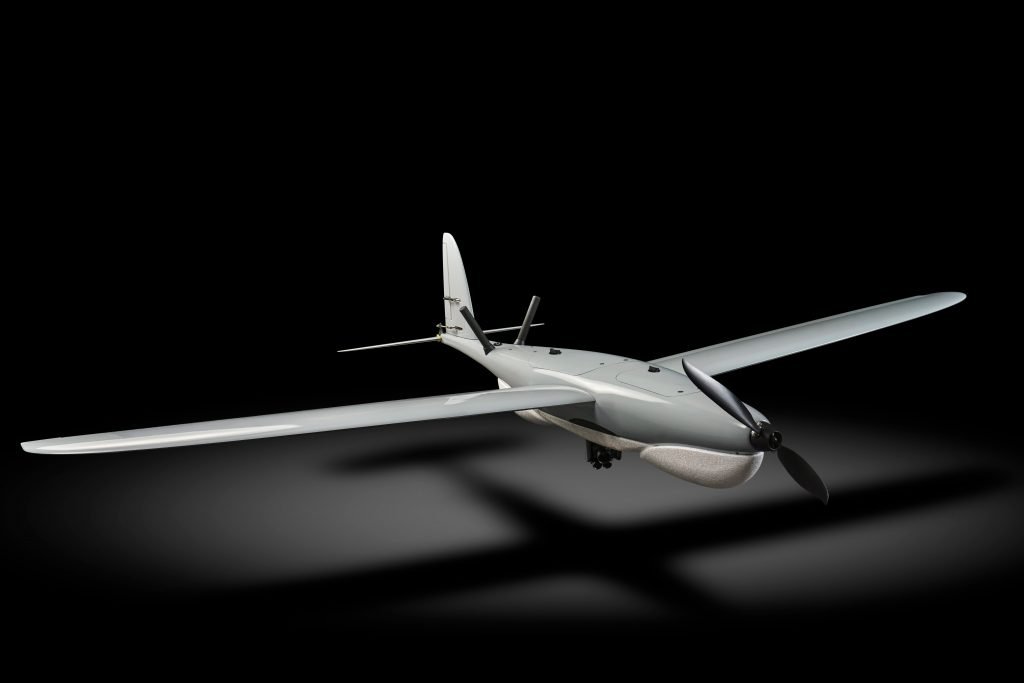

The RQ-35 Heidrun is a combat-proven fixed-wing mini-UAS designed for the most critical ISR missions.
Thanks to its cutting-edge technologies, it offers exceptional resilience in the face of electronic warfare, unrivalled autonomy, intuitive operation and single-operator capability.
Successfully deployed by the Ukrainian armed forces since 2022, it guarantees the collection of strategic data in real time and seamless integration with C2/BMS systems.

Architecture designed for the mission

Designed to advance modern operational capabilities, the RQ-35 Heidrun puts technology at the service of soldiers and decision-makers.
From the UAS platform to the software, payloads, antenna, GCS, training and field service, every component is designed to maximise mission time and ensure tactical superiority.

General specifications

Dimensions (unfolded) : 1070 x 1650 x 170 mm,
Weight (drone): 3,05 kg
Weight (battery): 0,92 kg
Transport: hard case or backpack
Cruising speed: 16 m/s (env. 60 km/h)
Operating altitude: up to 5000 m ASL
Wind tolerance: 16 m/s
Medium landing zone: 12.5 m radius
Launch/Landing: hand-launched, deep stall landing,
GNSS-denied operation: yes,
Emergency systems: loss of link, low battery, loss of GNSS data,
Radio frequency: 2,2 – 2,5 GHz,
Antennas: UAS: dipole antennas and GS: dipole antenna combined with a directional patch antenna,
Encryption: up to AES-GCM 256 ECDH-KAS (FIPS 140-2) depending on the EUS,
Platform: removable gimbal, 2 stabilised axes,
Visible camera (EO): resolution: 1280×720, zoom: x40 optical + x2 digital (x80), HFOV: 60° WFOV - 1.5° - .75°.
DFOV, 400 - 700nm spectrum,
Thermal camera (IR): resolution: 640 x 480, zoom: x4 digital, range: 8-14 μm,
Gimbal orientation: azimuth: +/- 155 to 166°.
