Medium-endurance VTOL drone

DeltaQuad Evo - The compact flying wing

  • Autonomy 4.5 h - Max speed 86km/h,
  • Precise navigation without GPS - Auterion Tactical Stack Avionics,
  • Deploys 1 person in 5min (max take-off weight 10kg),
  • Wind resistance 14m/s,
  • 272 km flight distance,
  • Interference avoidance - Silvus MANET,
  • Payload 3 kg,
  • Maximum data security in the event of gear loss,
  • Payload: Raptor 360 Nextvision, LiDAR Yellowscan,
  • 80x RGB zoom (40x optical, 2x digital) -Thermal 1280×720 - Object tracking and follow-up - Continuous rotation,
  • Kit includes: radio, antenna, ground control station.

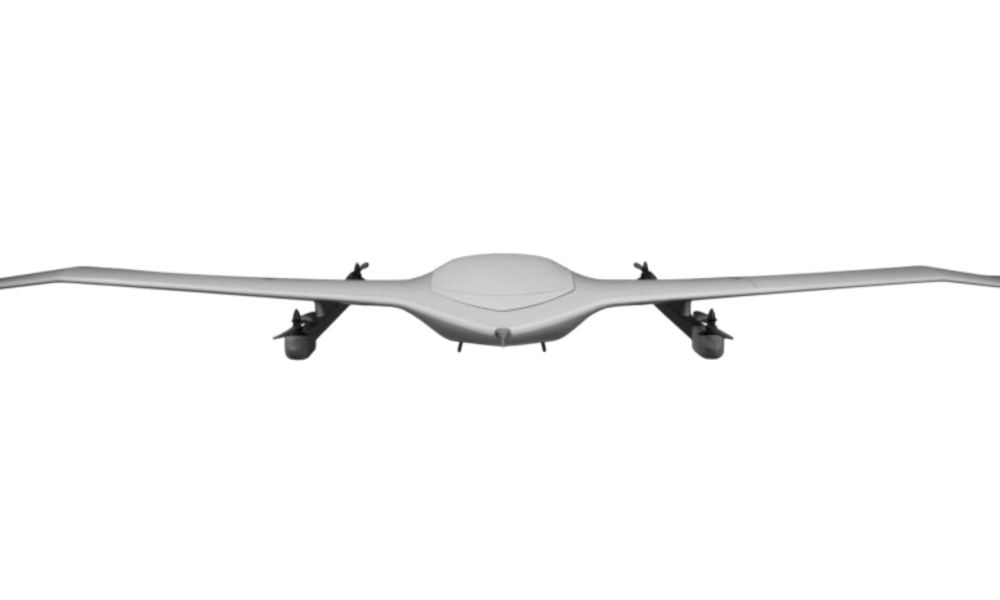

Drone Evo Tactical Deltaquad pour des missions de surveillance et de sécurité avec une autonomie et une stabilité exceptionnelles.

Extreme efficiency

The patented wing design and aerodynamic performance offer more than twice the range and endurance of comparable commercial drone systems, enabling a significant extension of operational capabilities.

Drone Evo Tactical Deltaquad vu de côté, idéal pour des missions de surveillance et de sécurité avec grande autonomie et stabilité.

A high-performance VTOL drone for complex environments

The Evo medium-endurance VTOL UAV stands out for its versatility and suitability for a wide range of uses, whether tactical, governmental, civil or semi-governmental.
Designed to excel in demanding environments, it comes in a range of editions tailored to specific needs.

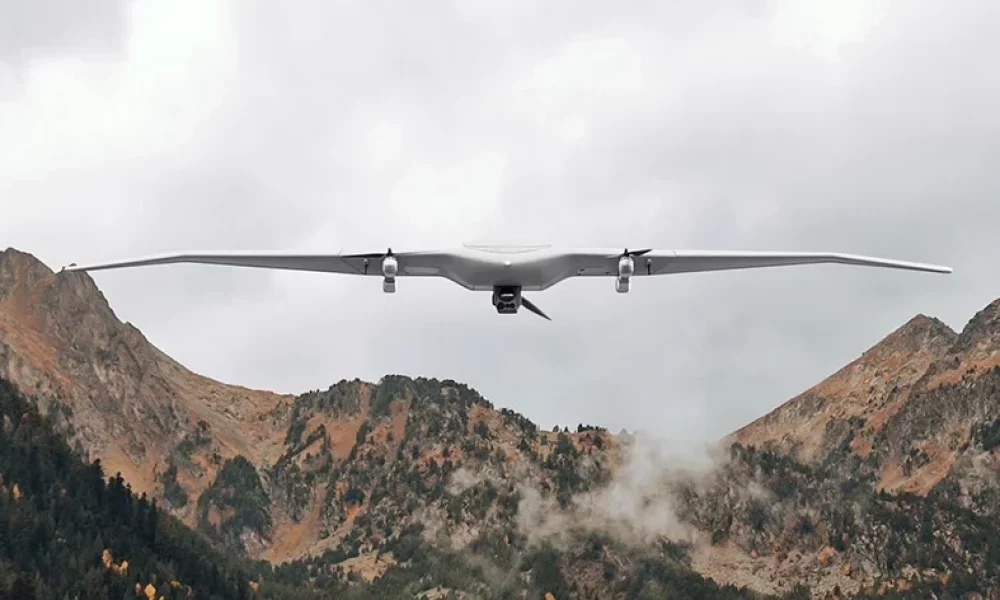

Drone Evo Tactical Deltaquad survolant un paysage montagneux, adapté aux missions de surveillance et de sécurité en terrains difficiles.
Boule optronique gyrostabilisée Trakka Systems, offrant une surveillance précise et stable pour des missions exigeantes.

NextVision Raptor 360

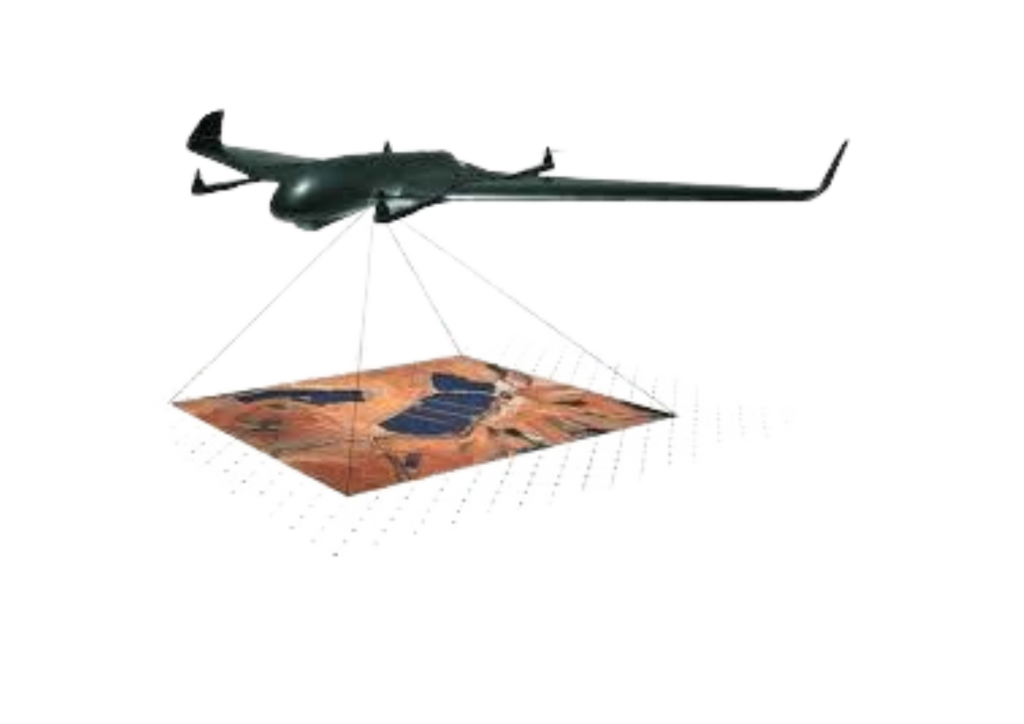

Infographie du drone Deltaquad Evo, illustrant ses capacités en reconnaissance, observation et missions complexes.

Reconnaissance, observation or complex missions

General specifications

Max. flight time: 272 min,
Max. flight range: 270 km,
Max. radio range: 30 km,
Ground control: DeltaQuad controller,
Radio options: DQ 2,4 GHz,
GNSS system: GPS L1/L2,
ATAK compatible: –
ADS software: –
Stealth switch: –
Interference avoidance: –
Inertial navigation: back home.

Max. flight time: 255 min,
Max. flight range: 254 km,
Max. radio range: 80 km,
Ground control: Panasonic Toughbook,
Radio options: Silvus 2,2-2,5 GHz,
GNSS system: GPS L1/L2,
ATAK compatible: ✓
ADS software: –
Stealth switch: –
Interference avoidance: –
Inertial navigation: back home.

Max. flight time: 246 min,
Max. flight range: 246 km,
Max. radio range: 80 km,
Ground control: Panasonic Toughbook,
Radio options: Silvus-IA 2,2-2,5 GHz,
GNSS system: GPS Anti-jam L1,
ATAK compatible: ✓
ADS software: ✓
Stealth switch: ✓
Interference avoidance: ✓
Inertial navigation: taking over the mission.

Max. flight time: 255 min,
Max. flight range: 254 km,
Max. radio range: 30 km,
Ground control: DeltaQuad controller,
Radio options: DQ 2,4 GHz,
GNSS system: GPS Anti-jam L1,
ATAK compatible: ✓
ADS software: ✓
Stealth switch: ✓
Interference avoidance: N/A,
Inertial navigation: taking over the mission.
