ROV compacts

A complete range of compact ROVs

  • Easy to install and robust,​
  • Rotating gripper arm tool / laser measurement,​
  • Sonar Oculus M750D / DVL A50,​
  • Current resistance 2.5 knots,​
  • Autonomy up to 5 h,​
  • Waterproof to 300 m, ​
  • 4K UHD camera.

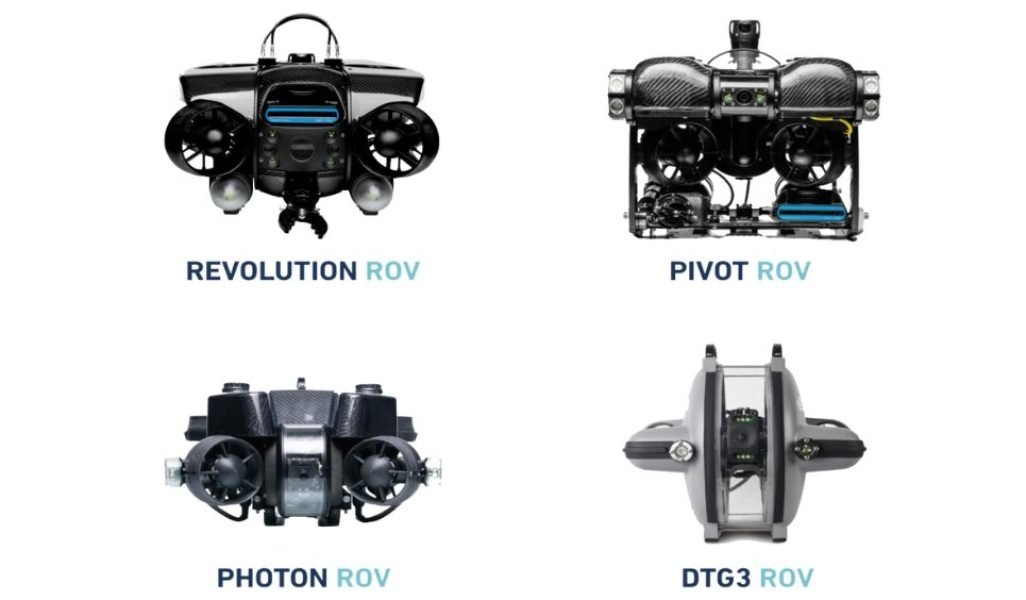

Les modèles de ROV de Deep Trekker : Photon, Pivot, et Révolution, illustrant la gamme complète de véhicules sous-marins destinés aux applications maritimes et sous-marines.

An improved viewing experience

Underwater inspection images are viewed live on the 7” screen of the waterproof remote control (or controller). Triggering 4K UHD video recording or photo-taking is easily accessible from the controller.
The improved interface also allows simultaneous viewing of 2D imaging sonar or USBL positioning data, without the need for control consoles.

Plongeurs et officiers sous-marins s'entraînant avec deux ROVs Pivot pour des missions sous-marines

ROV PHOTON

Lightweight, durable and equipped with a 4K camera capable of pivoting on a 260° axis, PHOTON is the most robust Mini ROV on the market.

The thrusters installed on the PHOTON ROV, as on the entire DEEP TREKKER range, benefit from an innovative design known as “magnetic coupling”, offering extreme durability without premature deterioration.

Capable of diving to 120 meters and reaching a speed of 2.5 knots (1.3 m/sec), the PHOTON ROV offers an autonomy of around 3 hours.

Its compact dimensions and weight of just over 10 kg enable it to be easily transported in its Pelican case. Deployed in less than 5 minutes, the PHOTON ROV offers a unique experience for underwater inspections.

ROV Photon Deep Trekker mis à l'eau, démontrant sa capacité à effectuer des missions sous-marines dans des conditions exigeantes

ROV PIVOT

The PIVOT completes the DEEP TREKKER range, positioning itself between the DTG3 and the REVOLUTION. It combines exceptional portability and power.
Equipped with six powerful thrusters, the PIVOT offers operators stability, power and speed.
The rotating axis of the gripper arm (97°), independent of the camera's rotating axis (220°), offers greater flexibility in image capture and object retrieval.
This is a clear advantage when using imaging sonar.
Its design in carbon fiber, anodized aluminum and stainless steel is a major asset, enabling operators to work in complete safety and peace of mind.

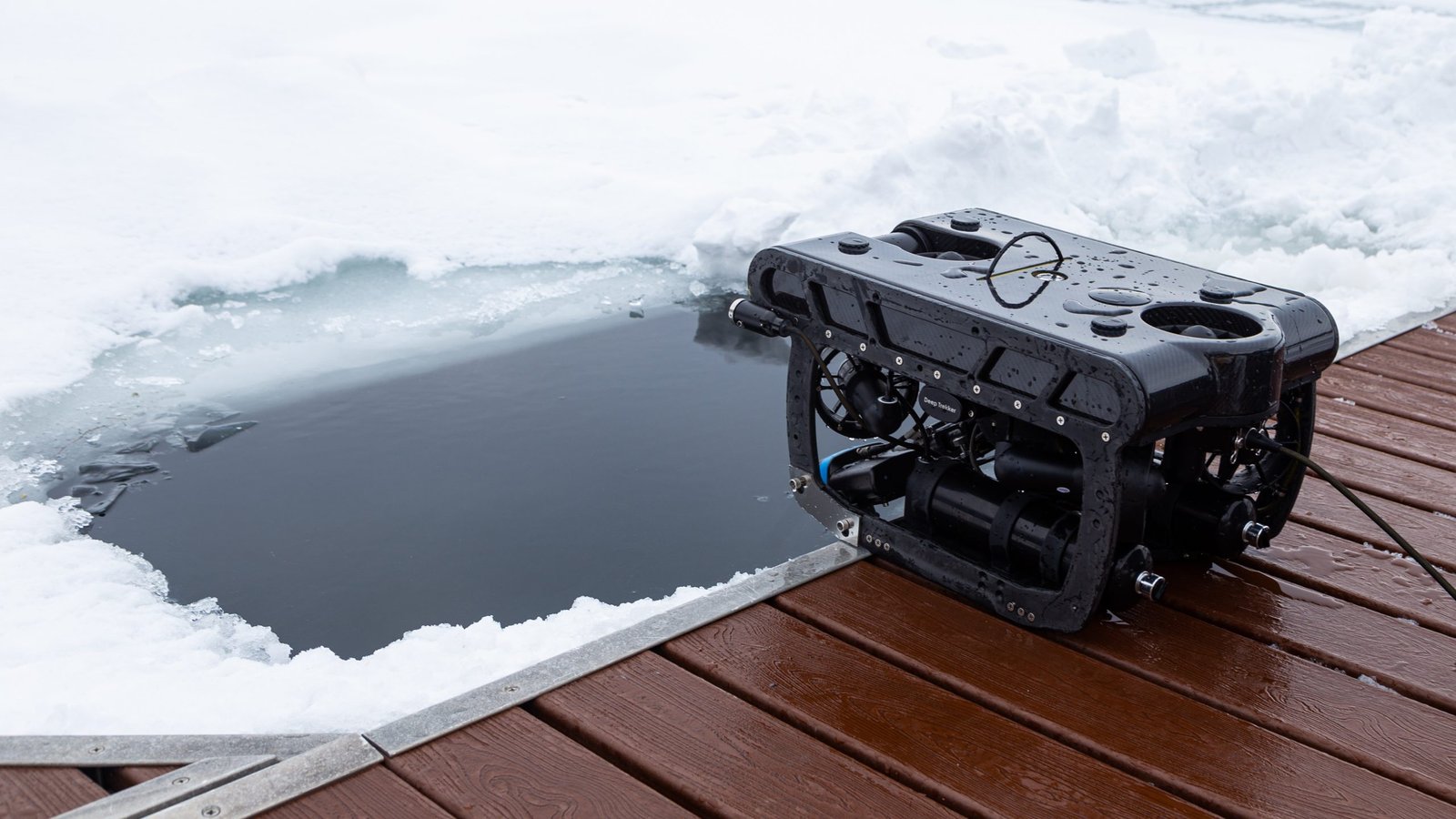

ROV Pivot Deep Trekker prêt à être déployé devant une eau gelée, mettant en avant sa capacité à intervenir dans des conditions de froid extrême.

ROV REVOLUTION

The most advanced, high-performance ROV in its class

Made from carbon fiber, anodized aluminum and stainless steel, it is distinguished by its robustness, enabling it to perform in tough environments.

Designed for complex inspections, the REVOLUTION can dive to a depth of 305 meters and offers 8 hours of autonomy thanks to its additional battery kit.

Equipped with six thrusters, it can reach a speed of 3.5 knots and withstand a current of 2.5 knots.

The thrusters exploit an innovative design known as “magnetic coupling” to ensure stable control during high-precision movements.

Deployed in less than 5 minutes, it provides surface operators with latency-free 4K UHD image feedback.

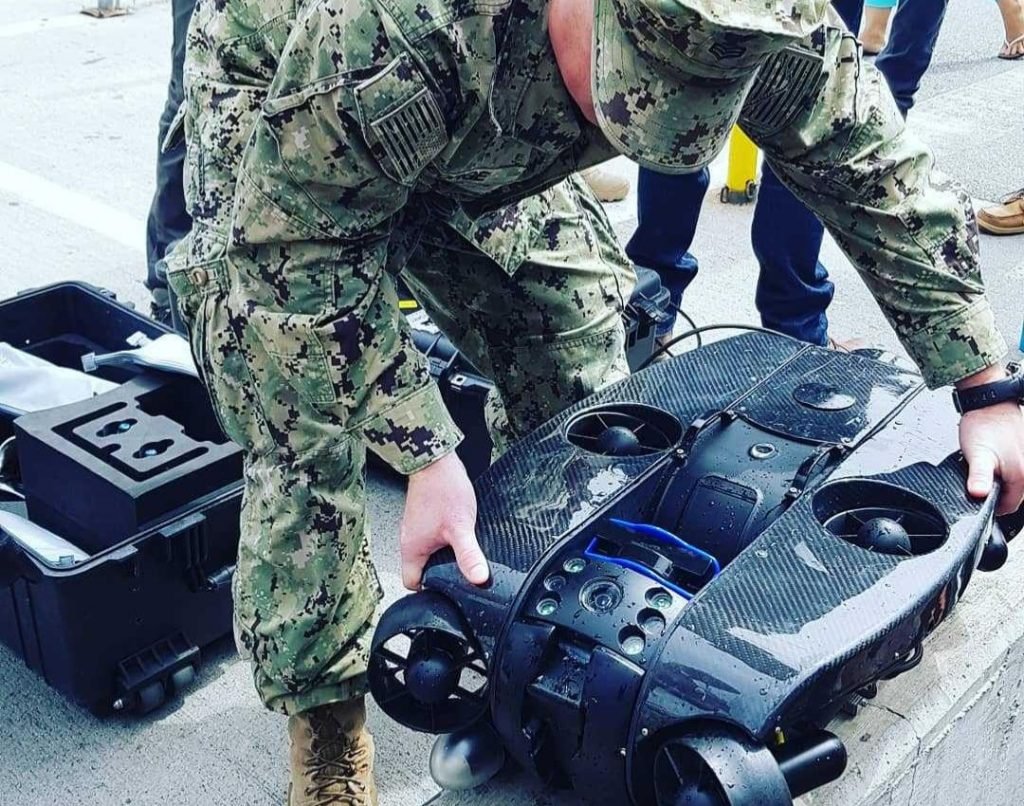

ROV Révolution Deep Trekker prêt à être déployé par un opérationnel en tenue kaki, illustrant son utilisation pour des missions sous-marines dans des conditions rigoureuses.

General specifications

Width: 332 mm,
Height: 228 mm,
Length: 481 mm,
Weight (in air): 11,6 kg,
Body material: anodized machined aluminum, carbon fiber and buoyancy foam,
Window material: sapphire and acrylic,
Nominal depth: 120 m,
Operating temperature: -10°C to 50°C,
Suitcase (optional): custom Pelican Air 1650, handle and wheels,
Drives/propellers: magnetic coupling/sealing.

Height: 310 mm,
Length: 576 mm,
Weight (in air): 17 kg,
Body material: anodized machined aluminum, carbon fiber, stainless steel and buoyancy foam,
Window material: sapphire and acrylic,
Depth: 305 m,
Operating temperature: -10 °C to 50 °C,
Suitcase (optional): custom Pelican Air 1650, handle and wheels,
Drives/propellers: magnetically coupled/sealed.

Width: 440 mm,
Length: 717 mm,
Weight (in air): 26 kg,
Body material: anodized machined aluminum, carbon fiber and buoyancy foam,
Window material: sapphire and acrylic,
Nominal depth: 305 m,
Operating temperature: -10°C to 50°C,
Suitcase (optional): custom Pelican 1650 & 1560,
Drives/propellers: magnetic coupling/sealing,
Attachment length options: 300m, 500m, 850m, 2km.

Logo Deep Trekker, partenaire de DSV dans la fourniture des solutions de surveillance sous-marine

Training and MCO

En partenariat avec la société ESCADRONE, nous accompagnons nos clients dans la prise en main des ROV pour leur permettre d’acquérir rapidement les compétences de pilotage. La formation est assurée en présentiel chez le client.

Nous avons également déployé un enseignement en e-learning pour assurer une formation continue.

Notre service SAV, disponible 5 j/7 de 9 h à 18 h, reste à votre disposition.

Nous gérons également la relation avec le fabricant en cas d’anomalie. Dans le cas d’un retour matériel chez le fabricant au Canada, nous prenons en charge l’enlèvement du matériel dans la limite de la garantie.

Les opérateurs ROV pourront également visualiser la taille du site à investiguer et planifier un parcours de mission de manière autonome.
