UUV - Autonomous underwater vehicle
UUV Quadroin: bionic design for optimized underwater performance

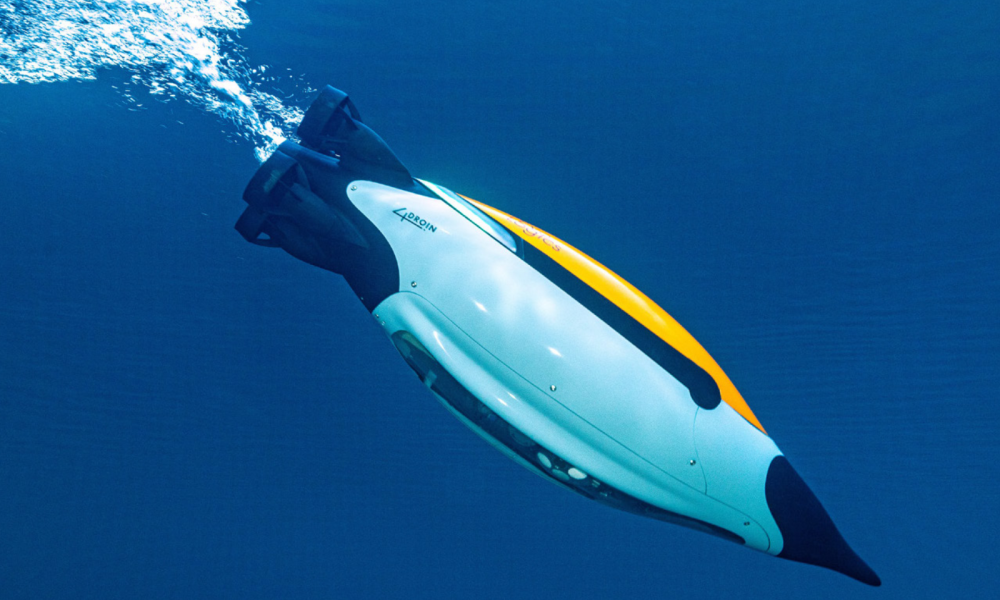

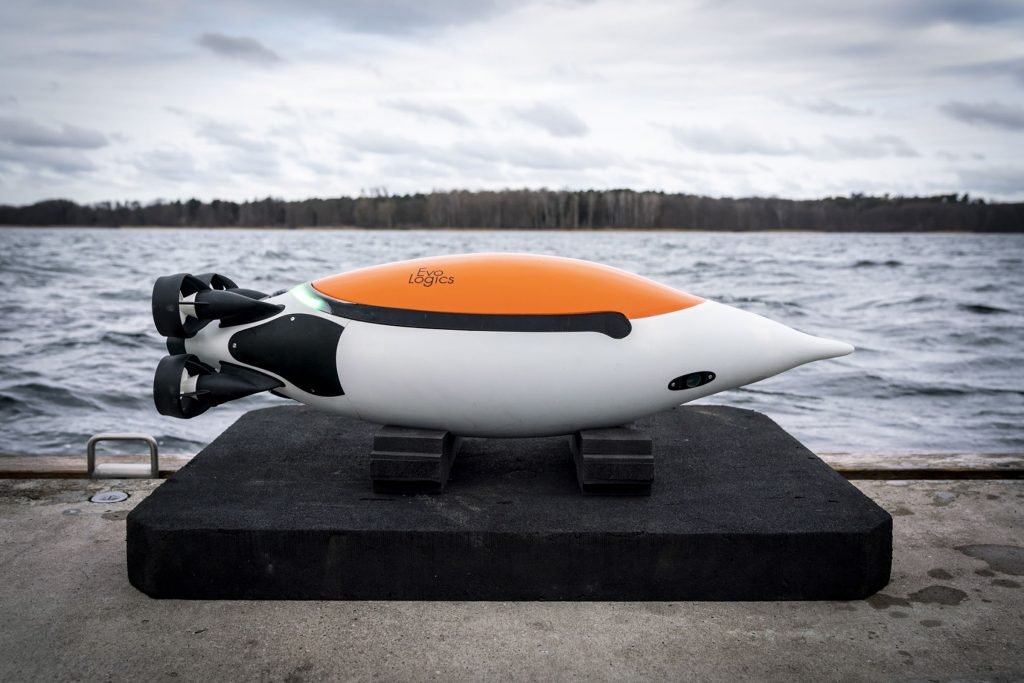

The Quadroin EvoLogics is an unmanned underwater vehicle with a low-drag bionic design. The result of many years of research, its penguin-inspired streamlined shape optimizes its hydrodynamic performance.
Optimized underwater performance, communication and flexibility
• Fast and manoeuvrable up to 5 m/s,
• The propulsion system comprises 4 horizontal thrusters in X configuration,
• Automatically retractable antenna for greater endurance and communication range on the surface,
• Surface communication module with WiFi, 868 MHz radio and GNSS,
• S2C M 18/34 “mini” integrated modem with streamlined antenna cover for underwater communication and positioning,
• Payload capacity for various sensors and instruments,
• Powerful lighting for easy location and retrieval.
General specifications
Quadroin UUV
Operating depth: 150 m,
Operating speed: up to 5 m/s,
Autonomy: more than 10 h at 2 m/s,
Power supply: internal rechargeable Li-Ion batteries,
Battery capacity: 1 kWh,
Charging time: less than 6 hours,
Underwater communication and positioning: acoustic modem S2C M 18/34, up to 13.9 kbit/s,
Navigation: GNSS, AHRS, depth sensor, optional LBL positioning, DVL, underwater collision avoidance system,
GNSS : GPS, GLONASS,
Radio communication: WiFi 2.4 GHz, ISM 863-870 MHz modem (GSM or Iridium optional),
Integrated AHRS: xSens MTi-630 integrated,
Embedded PC: I.MX 6ULL single-core ARM Cortex-A7, 792 MHz, 512 MB RAM, 64 GB memory (SD card), EvoLogics AI module for high-end embedded computing,
Payload options: side scan sonar, underwater front view camera, object recognition hardware and software, CTD, fluxgate magnetometer,
Payload capacity: up to 3 kg,
Dimensions: length 1120 mm, Ø 304 mm max,
Weight in air/floatability: less than 25 kg/ TBC.
